[9.4] View Content

  1. Overview
  2. Internal Technical Guides
  3. [9.4] View Content

Author name: Joylynne Grace C. Esportuno
Reviewers: Joshua Uriel Tribiana
Creation Date: June 29, 2026
References: https://github.com/wyzlab/WyzQuests/issues/85
Status: Approved and Merged

INTRODUCTION & GOALS

Problem Summary

The Quest Player gives learners a runtime view of published quest content. It transforms creator-authored canvas_metadata into a playable sequence of details, content nodes, scenario children, questions, quizzes, reflections, code blocks, media, discussions, and end states.

Goals

  • Render a quest's details page followed by active, non-archived canvas nodes.

  • Support both linear and exploration quest modes.

  • Flatten scenario children into one playable item per screen.

  • Route exploration-mode question choices through canvas edges.

  • Support public share links, embeds, SCORM status/location calls, and xAPI answer statements.

Non-Goals

  • The Quest Player does not edit quest content or canvas layout.

  • The Quest Player does not validate whether a quest is publishable; publishing validation is handled before runtime.

  • The Quest Player does not create learner enrollments; enrollment is handled by learner and creator enrollment APIs.

  • The Quest Player does not guarantee progress persistence for anonymous public share viewers.

Glossary

  • Quest Player —The learner-facing runtime component that displays quest content.

  • View Content — Product-facing name for opening and consuming quest content.

  • Canvas Metadata — JSONB quest structure stored in quests.canvas_metadata; contains nodes, edges, and quest_mode.

  • Node — A top-level canvas item such as Scenario, Text, Quiz, Reflection, Question, Image, Video, Audio, File, Link, Discussion, or Code.

  • Child Node — A renderable item nested inside a Scenario node.

  • Details Step — The initial player step that displays quest overview details before starting node playback.

  • Path History — Client-side list of previously visited player steps used for navigation labels and back behavior.

  • Visited Cards — Historical field name in quest_enrollments.progress; in the canvas player it stores visited node IDs.

  • Completed Nodes — Map in quest_enrollments.progress that stores completion metadata for interactive nodes.

  • SCORM — LMS packaging/runtime integration supported by /scorm/[questID].

  • xAPI — Experience API statement integration supported through SCORM/xAPI launch query parameters.

HIGH-LEVEL ARCHITECTURE

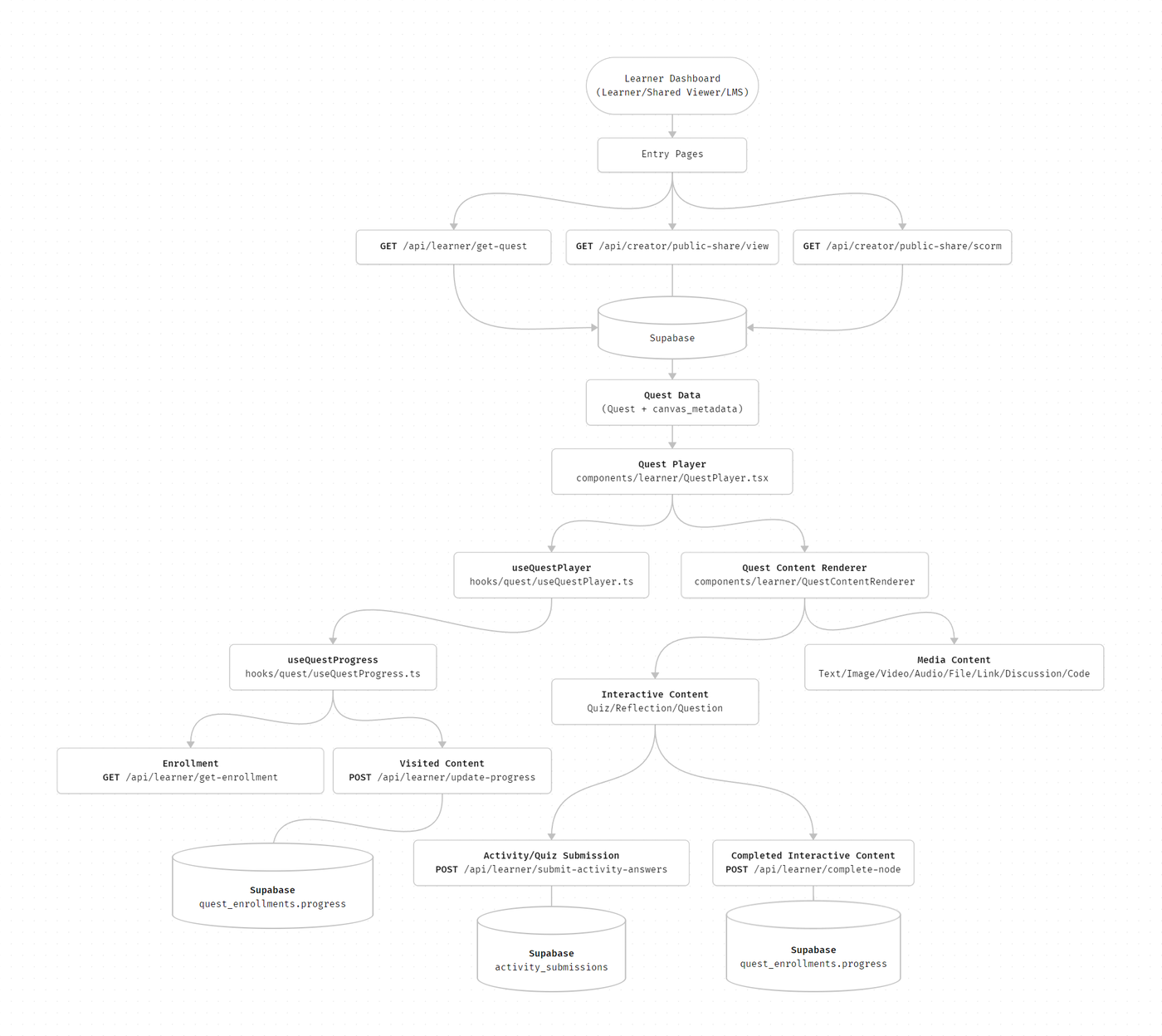

System Diagram

Technologies Used

  • Next.js, TypeScript, Zod, DOMPurify and TipTap editor

DETAILED DESIGN & IMPLEMENTATION

Data Model/Schema

#### `quests`
Relevant fields:
- `id`
- `title`
- `introduction`
- `tags`
- `profile_img_url`
- `publishing_status`
- `duration`
- `enrollment_fee`
- `background_img_url`
- `quest_mode`
- `canvas_metadata`

`canvas_metadata` is a JSONB object shaped by `canvasMetadataSchema`:
```ts
{
  nodes: CanvasNode[];
  edges: CanvasEdge[];
  quest_mode: "linear" | "exploration";
}
```

`CanvasNode` requires:
```ts
{
  id: string;
  x: number;
  y: number;
  type: string;
  data?: Record<string, unknown>;
}
```

`CanvasEdge` requires:
```ts
{
  source: string;
  target: string;
  id?: string;
  sourceHandle?: string | null;
  targetHandle?: string | null;
  label?: string;
  logic?: string;
  edgeType?: string;
}
```

#### `quest_enrollments`
The player reads and updates:
- `id`
- `quest_id`
- `learner_id`
- `status`
- `enrolled_at`
- `progress`

Current normalized `progress` structure:
```json
{
  "percentage": 0,
  "visited_cards": ["details", "node-id"],
  "completed_nodes": {
    "node-id": {
      "type": "Quiz",
      "completed_at": "2026-06-29T00:00:00.000Z",
      "score": 85,
      "attempts": 1
    }
  },
  "last_visited_at": "2026-06-29T00:00:00.000Z"
}
```

#### `activities`, `questions`, and `activity_submissions`
Quiz/activity nodes can load questions from the activity hub. Quiz-mode activity submissions are persisted in `activity_submissions`; activity-mode submissions can return graded results without saving a row.

### Entity Relationship Diagram
```mermaid
erDiagram
    QUESTS ||--o{ QUEST_ENROLLMENTS : has
    QUESTS ||--o{ QUEST_CONTENT_CARDS : legacy_or_linear_cards
    QUESTS ||--o{ ACTIVITY_SUBMISSIONS : records
    ACTIVITIES ||--o{ QUESTIONS : contains
    ACTIVITIES ||--o{ ACTIVITY_SUBMISSIONS : receives
    QUEST_CONTENT_CARDS ||--o{ ACTIVITY_SUBMISSIONS : references

    QUESTS {
      uuid id
      text title
      text publishing_status
      text quest_mode
      jsonb canvas_metadata
    }
    QUEST_ENROLLMENTS {
      uuid id
      uuid quest_id
      uuid learner_id
      jsonb progress
      text status
    }
    ACTIVITIES {
      uuid id
      text activity_type
      int max_retakes
      jsonb grading_settings
    }
    QUESTIONS {
      uuid id
      uuid activity_id
      text type
      text text
      jsonb answer
      jsonb options
    }
    ACTIVITY_SUBMISSIONS {
      uuid id
      uuid learner_id
      uuid activity_id
      uuid quest_id
      uuid content_card_id
      jsonb answers
      int score
      int total_questions
      int percentage
    }
```

API Specification

#### `GET /api/learner/get-quest?id=<quest_id>`
- Authentication: Required
- Purpose: Fetch a published quest for authenticated learner playback.
- Success response:
```json
{
  "success": true,
  "data": {
    "id": "uuid",
    "title": "Quest title",
    "publishing_status": "published",
    "canvas_metadata": { "nodes": [], "edges": [], "quest_mode": "linear" }
  }
}
```
- Notes: Filters to `publishing_status = published`.

#### `GET /api/learner/get-enrollment?quest_id=<quest_id>`
- Authentication: Required
- Purpose: Load learner enrollment and normalized progress.
- Success response:
```json
{
  "success": true,
  "data": {
    "id": "enrollment-id",
    "quest_id": "quest-id",
    "progress": {
      "percentage": 0,
      "visited_cards": [],
      "completed_nodes": [],
      "last_visited_at": null
    },
    "status": "active",
    "enrolled_at": "2026-06-29T00:00:00.000Z"
  }
}
```

#### `POST /api/learner/update-progress`
- Authentication: Required
- Purpose: Mark a player step/node as visited.
- Request:
```json
{
  "quest_id": "uuid",
  "node_id": "details"
}
```
- Success response:
```json
{
  "success": true,
  "data": {
    "progress": {
      "percentage": 25,
      "visited_cards": ["details"],
      "last_visited_at": "2026-06-29T00:00:00.000Z"
    },
    "percentage": 25,
    "visited_nodes": ["details"]
  }
}
```
- Notes: `node_id = details` is treated as a special valid step. Other node IDs must exist in active `canvas_metadata.nodes`.

#### `POST /api/learner/complete-node`
- Authentication: Required for persisted learner completions
- Purpose: Mark an interactive node as completed.
- Request:
```json
{
  "quest_id": "uuid",
  "node_id": "node-or-child-id",
  "node_type": "Quiz",
  "score": 85,
  "question_results": [],
  "raw_score": 17,
  "learner_answer": "<p>Reflection answer</p>"
}
```
- Valid `node_type` values: `Quiz`, `Reflection`, `Question`, `Code`
- Success response:
```json
{
  "success": true,
  "data": {
    "message": "Node completion recorded",
    "node_id": "node-or-child-id",
    "completed_at": "2026-06-29T00:00:00.000Z",
    "attempts": 1
  }
}
```
- Notes: Validates both top-level nodes and scenario children.

#### `POST /api/learner/submit-activity-answers`
- Authentication: Required
- Purpose: Submit answers for activity-hub backed cards.
- Request:
```json
{
  "activity_id": "uuid",
  "quest_id": "uuid",
  "content_card_id": "uuid",
  "answers": {
    "question-id": "answer"
  }
}
```
- Success response:
```json
{
  "success": true,
  "data": {
    "score": 3,
    "total_questions": 4,
    "percentage": 75,
    "question_results": [],
    "passed": true,
    "activity_type": "quiz",
    "passing_score": 70,
    "submission_id": "uuid",
    "attempt_number": 1
  }
}
```

Logic & Workflows

Entry Workflow

  1. app/quests/[id]/page.tsx loads the quest through either learner fetch or creator preview fetch.

  2. app/share/[hash]/page.tsx resolves public share metadata and blocks inactive links.

  3. app/scorm/[questID]/page.tsx resolves SCORM/public-share data and passes SCORM/xAPI launch configuration.

  4. All entry points render QuestPlayer with quest and canvasMetadata.

Player Initialization

  1. QuestPlayer detects SCORM delivery by comparing shareType against known SCORM export types.

  2. useQuestPlayer receives canvasMetadata, questId, quest_mode, SCORM state, preview state, and optional completion callback.

  3. The hook chooses the start node from active nodes using data.isStart === true, falling back to the first active node.

  4. The initial currentStep is always details.

Node and Child Rendering

  1. Archived top-level nodes are ignored.

  2. Scenario nodes expose non-question children first, then a question child if present.

  3. Standalone non-scenario nodes are wrapped as their own playable child when they do not have scenario children.

  4. QuestContentRenderer dispatches rendering based on child type.

  5. Text HTML is sanitized through DOMPurify before rendering.

Navigation Workflow

  1. The learner starts on the details step.

  2. Continue moves from details to the selected start node.

  3. Non-question children move to the next child until the final child.

  4. At the final child, the player follows an outgoing edge.

  5. In linear mode, question choices do not affect routing; the player follows the first edge from the current node.

  6. In exploration mode, question choices call getNextNode(currentStep, choiceId, edges).

  7. Empty scenario nodes auto-advance to the next connected node when possible.

  8. End nodes display an end-of-path state and enable Finish.

Question Workflow

  1. Single-choice questions set selectedChoiceId.

  2. Checkbox questions maintain selectedChoiceIds and use the first selected choice for route selection.

  3. Submission marks the current question child complete.

  4. Feedback is shown when choice feedback exists.

  5. Continue is disabled until required question submission is complete.

  6. xAPI answered statements are sent on choice selection when endpoint, auth, actor, and current child are available.

Interactive Completion Workflow

  1. QuizRenderer, ReflectionRenderer, QuestionBlock, and code completion callbacks report completion to QuestPlayer.

  2. useNodeInteractions sends completion details to /api/learner/complete-node unless the player is in preview/SCORM contexts where persistence should be avoided.

  3. Completion writes update quest_enrollments.progress.completed_nodes.

  4. Attempts increment if the same node is completed again.

Progress Calculation

/api/learner/update-progress computes progress with a mixed model:

  • 60% from visited active canvas nodes plus details

  • 40% from completed interactive nodes when interactives exist

/api/learner/complete-node computes interactive completion percentage from completed interactive nodes. Because both APIs can update progress.percentage, engineers should inspect the full progress object when debugging unexpected learner percentages.

INFRASTRUCTURE & OPERATIONS

Dependencies

  • Supabase database and RLS/auth behavior

  • Clerk/auth integration through authenticateUser

  • Public share APIs for shared and SCORM launches

  • Canvas authoring and validation pipeline that writes valid quests.canvas_metadata

  • Activity hub APIs and data for hub-backed quiz nodes

  • Browser Fullscreen API for embedded share links

  • LMS runtime environment for SCORM and xAPI launches

Monitoring & Alerting

Current implementation relies primarily on server logs and browser console errors. Recommended log points to monitor:

  • GET /api/learner/get-quest 404 or auth failures

  • GET /api/learner/get-enrollment enrollment misses

  • POST /api/learner/update-progress validation failures for missing node IDs

  • POST /api/learner/complete-node validation failures for missing child nodes

  • POST /api/learner/submit-activity-answers grading, submission, and retake-limit errors

  • Public share fetch failures in /share/[hash] and /scorm/[questID]

Recommended alert thresholds:

  • 5xx rate above 2% for learner APIs over 10 minutes

  • Repeated Node not found in quest canvas errors for the same quest

  • Public share view failures above normal traffic baseline

  • Activity submission save failures above 1% over 10 minutes

Deployment Plan

  1. Confirm all schema migrations for quests.canvas_metadata and enrollment progress are applied.

  2. Validate representative published quests using docs/QUEST_VALIDATION.md.

  3. Test authenticated learner playback through /quests/[id].

  4. Test creator preview through /quests/[id]?preview=true.

  5. Test public share playback through /share/[hash].

  6. Test embed fullscreen controls for share type embed.

  7. Test SCORM launch through /scorm/[questID]?ver=<version>.

  8. Test xAPI launch with ver=xapi, endpoint, auth, and actor.

  9. Roll out behind existing publishing/share controls; no separate Quest Player feature flag currently exists.

  10. Watch learner API logs during the first production window.

TESTING & QUALITY ASSURANCE

Test Strategy

Recommended test coverage:

  • Unit test useQuestPlayer start-node selection, archived-node skipping, child flattening, linear routing, exploration routing, end-node handling, and back/restart behavior.

  • Unit test progress normalization for legacy number, completed_sections, and current visited_cards formats.

  • API tests for:

    • Missing quest IDs and node IDs

    • Unenrolled learner progress writes

    • Archived node rejection

    • Scenario child completion

    • Activity retake-limit enforcement

    • Published-only learner quest fetches

    • Integration tests for authenticated quest playback and progress persistence.

  • E2E tests for:

    • Details to first node

    • Media rendering

    • Quiz submission

    • Reflection word limits and submission

    • Branching choice path in exploration mode

    • Share link inactive state

    • Preview mode avoiding progress writes

Known Limitations

  • Anonymous shared-link viewers receive a login prompt and should not expect saved progress.

  • visited_cards is a legacy name and now stores canvas node IDs.

  • update-progress and complete-node both update progress percentage with different formulas.

  • Checkbox branching uses the first selected choice as the route choice.

  • Empty scenario nodes can auto-advance, but malformed edge graphs can still leave the learner without a next step.

  • Activity submission progress still references quest_content_cards, which can diverge from canvas-first playback in some edge cases.

MAINTENANCE & SUPPORT

Troubleshooting

Quest opens as 404 for learners

  • Confirm the quest exists.

  • Confirm publishing_status = published.

  • Confirm learner authentication is valid.

  • For preview mode, confirm the creator endpoint is being used through ?preview=true.

Player starts but no content appears

  • Inspect quests.canvas_metadata.nodes.

  • Confirm at least one active node exists.

  • Confirm node data includes a renderable type.

  • Check whether nodes or children have data.isArchived = true.

Continue button is disabled

  • Check whether the current child is interactive.

  • For questions, submit or acknowledge feedback before continuing.

  • For reflections, satisfy min/max word constraints and submit.

  • For quizzes, answer required questions and pass client/server validation.

Progress is not saved

  • Confirm the learner is enrolled in quest_enrollments.

  • Confirm the player is not in preview mode.

  • Confirm the player is not in SCORM mode.

  • Inspect /api/learner/update-progress and /api/learner/complete-node responses.

  • Check whether the node ID exists in active canvas_metadata.

Branching goes to the wrong node

  • Confirm quest mode is exploration; linear mode intentionally ignores choice-based routing.

  • Inspect canvas_metadata.edges for source, target, handles, and choice linkage.

  • Confirm the selected choice ID matches the edge routing logic expected by getNextNode.

Quiz questions do not load

  • For hub-backed quizzes, confirm questionSource = hub and activityId is present.

  • Check /api/learner/get-activity-questions.

  • Confirm the activity is published/available and has questions.

Shared link does not open

  • Confirm the public share record is live.

  • Confirm expires_at has not passed.

  • Check /api/creator/public-share/view?hash=<hash>.

SCORM or xAPI telemetry is missing

  • Confirm /scorm/[questID] receives the expected ver query value.

  • For xAPI, confirm endpoint, auth, and actor query parameters are present.

  • Inspect browser console/network calls for xAPI statement failures.

Changelog

  • 1.0 - Approved, Initial internal technical guide for Quest Player/View Content based on current canvas-first implementation, 06/29/2026

Document version: 1.0, Published, implementation of View Content feature pushed to dev server, 06/29/2026

Written by Joylynne Last updated June 29, 2026
Was this article helpful?
