[8.1] Enrollment Alerts | WyzQuests Documentation

Author name: Joylynne Grace C. Esportuno
Reviewers: Joshua Uriel Tribiana
Creation Date: June 29, 2026
References: https://github.com/wyzlab/WyzQuests/issues/82
Status: Approved and Merged

INTRODUCTION & GOALS

Problem Summary

Enrollment Alerts reduces silent enrollments and notify learners when a creator enrolls them in a quest. The alert is delivered as a transactional email rendered from a React Email template and sent through the platform SMTP configuration, with optional agency SMTP/branding support available in the shared email service.

Goals

Send an enrollment email after a creator successfully enrolls a learner.
Send enrollment emails for each successful CSV bulk enrollment.
Render a branded email template with learner name, quest title, quest description, creator name, and a Start Quest link.
Use the shared EmailService for SMTP delivery.
Keep enrollment creation successful even when email sending fails.
Provide an admin test endpoint and UI action for validating the enrollment email template and SMTP delivery.

Non-Goals

Enrollment Alerts do not currently send in-app notifications.
Enrollment Alerts do not currently send for learner self-enrollment through /api/learner/enroll.
Enrollment Alerts do not retry failed email sends.
Enrollment Alerts do not store an email delivery audit row.
Enrollment Alerts do not block enrollment creation when SMTP delivery fails.
Enrollment Alerts do not currently support per-email localization or template editing from the UI.

Glossary

Enrollment Alert — Transactional email sent when a learner is added to a quest by a creator.
Single Enrollment — Creator adds one learner by email through create-enrollment.
Bulk Enrollment — Creator uploads a CSV of learner emails through bulk-create.
React Email — Component-based email rendering used through @react-email/render.
Branding Data — Optional logo and color theme loaded from branding_details by agency ID.
Platform SMTP — SMTP configuration read from environment variables.
Agency SMTP — Optional agency-specific SMTP configuration stored in branding data and decrypted before use.
Silent Failure — Email send failure is logged but does not fail the enrollment transaction.

HIGH-LEVEL ARCHITECTURE

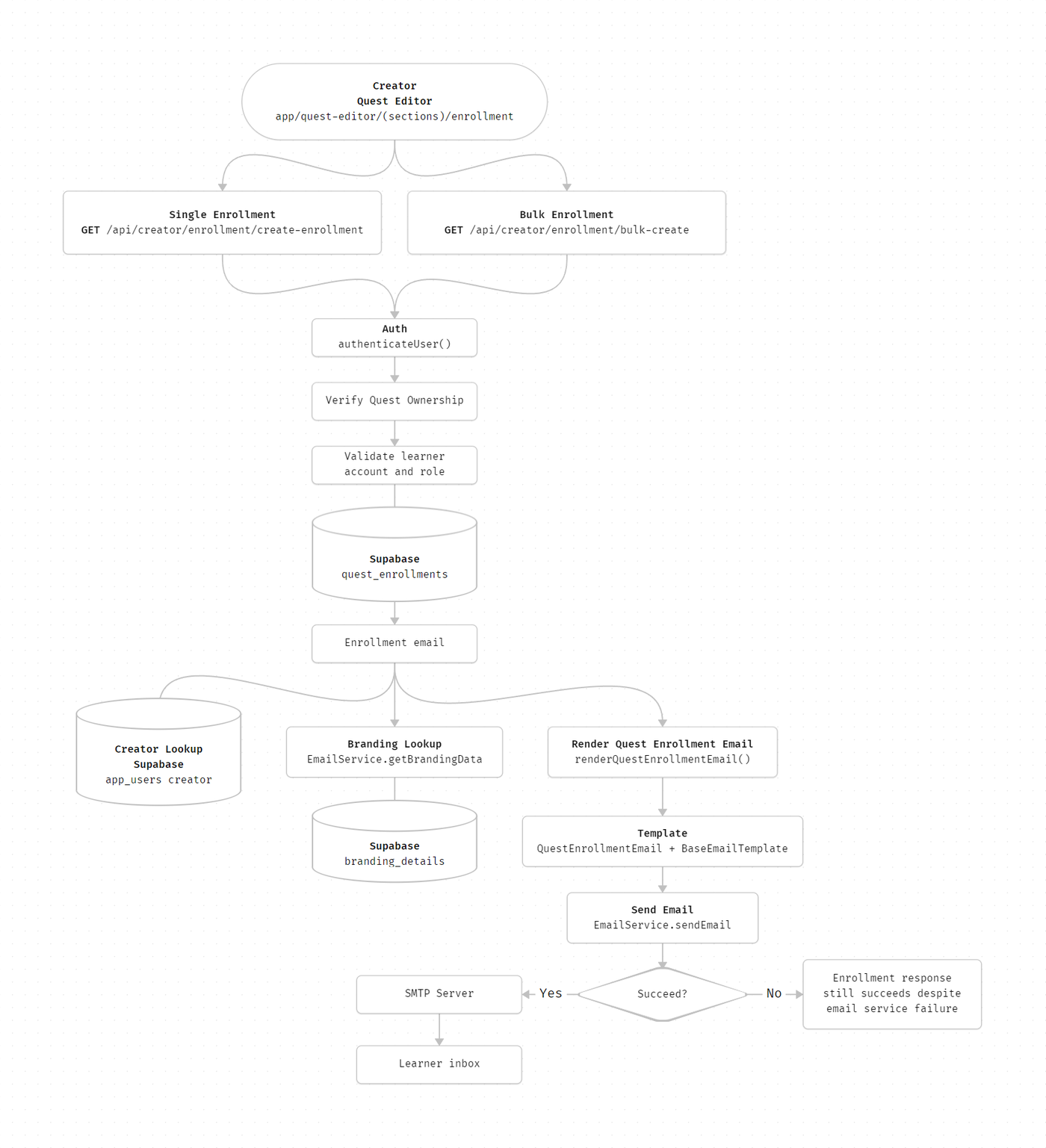

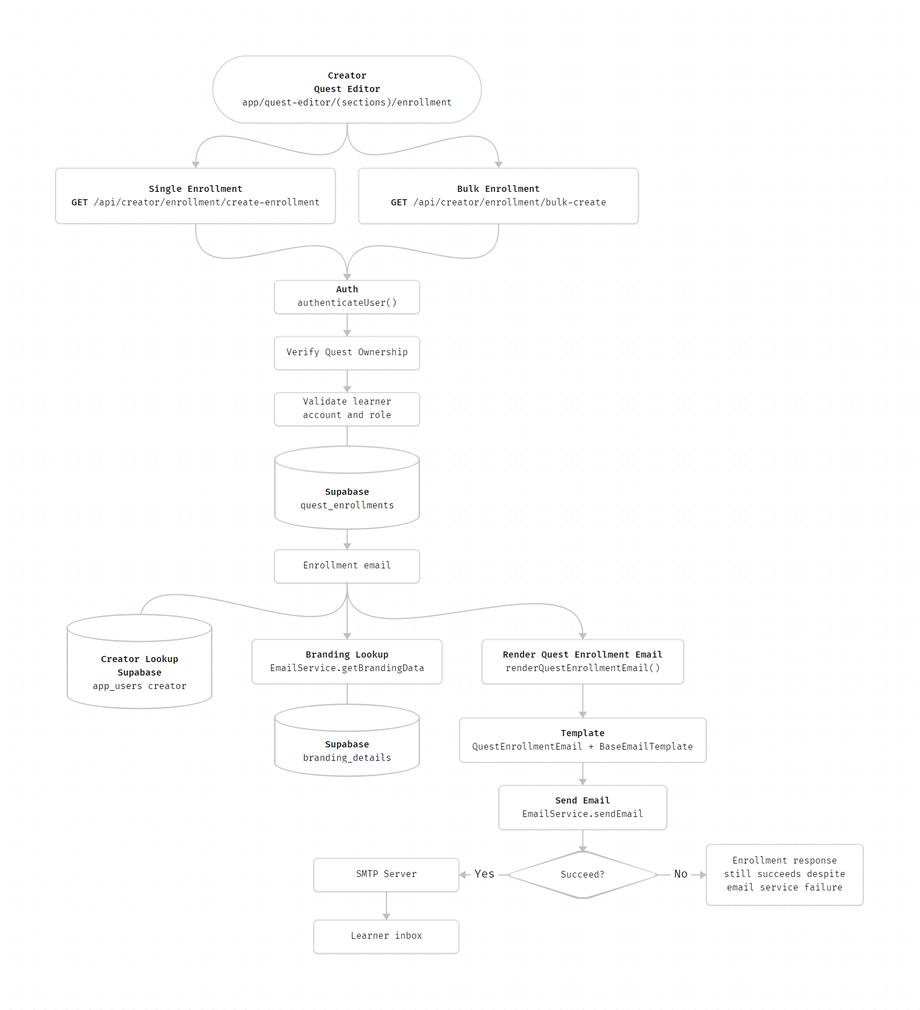

System Diagram

Technologies used

Next.js, TypeScript, Supabase, Clerk, React Email, Nodemailer, Emailit, Zod, Papa Parse, and CryptoJS

DETAILED DESIGN & IMPLEMENTATION

Data Mode/Schema

#### `quest_enrollments`
Enrollment Alerts are triggered only after rows are inserted into `quest_enrollments`.

Relevant fields:
- `id`
- `quest_id`
- `learner_id`
- `status`
- `progress`
- `enrolled_at`

Single enrollment inserts:
```json
{
  "quest_id": "uuid",
  "learner_id": "uuid",
  "status": "ongoing",
  "progress": {
    "percentage": 0,
    "visited_cards": [],
    "last_visited_at": null
  },
  "enrolled_at": "2026-06-29T00:00:00.000Z"
}
```

Bulk enrollment inserts the same logical data but currently omits `progress`, relying on database defaults or nullable progress behavior.

#### `quests`
Enrollment APIs read:
- `id`
- `title`
- `description`
- `creator_id`

`title` and `description` are used in the email template. `creator_id` is used to authorize the creator's access to the quest.

#### `app_users`
Enrollment APIs read:
- `id`
- `name`
- `email`
- `role`

Learners must exist in `app_users` and must have `role = LEARNER`. Creator name is used in the email template.

#### `branding_details`
`EmailService.getBrandingData(agencyId)` can read:
- `logo`
- `color_theme`
- `smtp_config`

`color_theme` can include:
```json
{
  "primaryButtonBg": "#0093DD",
  "primaryButtonText": "#ffffff",
  "headingText": "#1e3a8a",
  "bodyText": "#374151"
}
```

API Specification

#### `POST /api/creator/enrollment/create-enrollment`
- Authentication: Required creator session
- Purpose: Enroll one learner and send one enrollment alert.
- Request:
```json
{
  "quest_id": "uuid",
  "learner_email": "learner@example.com"
}
```
- Success response:
```json
{
  "success": true,
  "message": "Learner enrolled successfully",
  "data": {
    "id": "enrollment-id",
    "learner_id": "learner-id",
    "quest_id": "quest-id",
    "name": "Learner Name",
    "email": "learner@example.com",
    "status": "ongoing",
    "enrolledAt": "2026-06-29T00:00:00.000Z",
    "progress": {
      "percentage": 0,
      "visited_cards": [],
      "last_visited_at": null
    }
  }
}
```
- Main validation failures:
  - `400`: Missing quest ID or learner email
  - `404`: Quest not found or learner account does not exist
  - `403`: Target user is not a learner
  - `409`: Learner is already enrolled
  - `500`: Enrollment insert failed
- Email behavior: email errors are logged and do not change the success response.

#### `POST /api/creator/enrollment/bulk-create?questId=<quest_id>`
- Authentication: Required creator session
- Purpose: Enroll many learners from a CSV and send enrollment alerts to successful inserts.
- Request: `multipart/form-data` with a `file` field.
- CSV format:
```csv
email
learner1@example.com
learner2@example.com
```
- Success response:
```json
{
  "success": true,
  "successfulEnrollments": 2,
  "failedEnrollments": [
    {
      "email": "not-a-learner@example.com",
      "reason": "User is not a learner"
    }
  ]
}
```
- Main validation failures:
  - `400`: Missing quest ID, missing file, or invalid CSV
  - `404`: Quest not found or unauthorized
  - `500`: User lookup or enrollment insert failed
- Email behavior: sends emails in parallel with `Promise.all`; individual email failures are logged and do not fail the bulk response.

#### `POST /api/admin/branding/email/test-enrollment`
- Authentication: Required `ADMIN` role with agency context
- Purpose: Render and send a sample enrollment email.
- Request:
```json
{
  "testEmail": "test@example.com",
  "learnerName": "Test Learner",
  "questTitle": "Sample Quest",
  "creatorName": "Test Creator"
}
```
- Success response:
```json
{
  "success": true,
  "message": "Enrollment email test sent successfully"
}
```
- Notes: Uses agency branding data and agency SMTP when available, with fallback behavior controlled by `EmailService`.

#### `POST /api/admin/branding/smtp/test`
- Authentication: Required `ADMIN` role with agency context
- Purpose: Verify a submitted SMTP config can connect.
- Request:
```json
{
  "host": "smtp.example.com",
  "port": 587,
  "user": "smtp-user",
  "password": "smtp-password",
  "from_name": "WyzQuests",
  "from_email": "notifications@example.com",
  "enabled": true
}
```

Logic & Workflows

Single Enrollment Alert Workflow

Creator submits learner email and quest ID from the enrollment UI.
API authenticates the creator through authenticateUser.
API verifies the quest exists and belongs to the creator.
API verifies the target email exists in app_users.
API rejects nonLEARNER users.
API checks for an existing enrollment.
API inserts a quest_enrollments row.
API fetches creator name from app_users.
API gets branding data through EmailService.getBrandingData.
API renders QuestEnrollmentEmail through renderQuestEnrollmentEmail.
API sends the email through EmailService.sendEmail.
If email sending fails, the error is logged and the enrollment response still succeeds.

Bulk Enrollment Alert Workflow

Creator uploads a CSV with an email column.
API authenticates the creator and verifies quest ownership.
API parses CSV with Papa Parse and validates rows with Zod.
API fetches all matching users in one Supabase query.
API fetches existing enrollments for the quest.
API builds learnersToInsert and failedEnrollments.
API inserts all valid learner enrollments in one Supabase insert.
API fetches email service and branding data once.
API renders and sends enrollment emails in parallel for successful enrollments.
Individual email failures are logged without failing the bulk response.

Email Rendering Workflow

renderQuestEnrollmentEmail calls React Email render.
QuestEnrollmentEmail prepares default colors from brandingData.color_theme or fallback constants.
Template uses APP_URL to build the Start Quest button URL.
Template renders inside BaseEmailTemplate.
BaseEmailTemplate optionally displays the configured logo and common footer.

SMTP Delivery Workflow

EmailService.getInstance() returns a singleton service.
sendEmail resolves SMTP config.
If an agencyId is provided and agency SMTP is enabled, the service decrypts and tries agency SMTP first.
If agency SMTP fails, it logs the failure and falls back to platform SMTP.
If no agencyId is provided, platform SMTP is used directly.
The transporter is verified before sending.
The method returns { success, error?, usedFallback? }.

INFRASTRUCTURE & OPERATIONS

Dependencies

Supabase tables: quests, app_users, quest_enrollments, branding_details
SMTP environment variables:
- SMTP_HOST
- SMTP_PORT
- SMTP_USER
- SMTP_PASSWORD
- SMTP_FROM_NAME
- SMTP_FROM_EMAIL
APP_URL for Start Quest links in email templates
ENCRYPTION_KEY for agency SMTP password decryption
External SMTP provider availability
Clerk/session authentication through local auth helpers

Monitoring & Alerting

Current implementation logs email failures to server logs and does not persist delivery status. Monitor:

Failed to send enrollment email
Email failed: <learner_email>
Email sending failed
Agency SMTP failed, falling back to platform SMTP
POST /create-enrollment error
[BULK_ENROLLMENT_POST]

Deployment Plan

Confirm platform SMTP environment variables are present in the target environment.
Confirm APP_URL points to the correct deployed application URL.
Confirm ENCRYPTION_KEY is configured for environments using agency SMTP.
Run the admin SMTP test.
Run the admin enrollment email test.
Test single creator enrollment with a real learner account.
Test bulk CSV enrollment with valid, duplicate, missing, and non-learner emails.
Check server logs for silent email failures.
Confirm learner receives email and Start Quest link opens /quests/<questID>.

TESTING & QUALITY ASSURANCE

Testing Strategy

Recommended test coverage:

Unit test QuestEnrollmentEmail rendering with and without branding data.
Unit test EmailService.sendEmail platform SMTP success and failure paths using mocked Nodemailer.
Unit test agency SMTP fallback behavior.
API tests for create-enrollment:
- Missing fields
- Quest ownership failure
- Missing learner account
- Non-learner target
- Duplicate enrollment
Successful enrollment with email service mocked
Email failure still returns successful enrollment
API tests for bulk-create:
- Missing file
- Invalid CSV shape
- Mixed valid and invalid learners
- Duplicate filtering
- Per-recipient email failure logging
Manual QA:
- Verify email subject and rendered content
- Verify Start Quest button URL
- Verify logo and color theme rendering
- Verify test email UI states in EmailSettings

Known Limitations

No delivery audit table exists for enrollment alert attempts.
No retry queue or background job handles SMTP failures.
Email sending happens inside the request lifecycle, which can slow large bulk enrollment requests.
Learner self-enrollment through /api/learner/enroll does not send an enrollment alert.
Bulk enrollment currently renders learnerName as "Learner" instead of each user's stored name.
Bulk enrollment and the admin test endpoint should pass questID into renderQuestEnrollmentEmail; otherwise the Start Quest link can render with an undefined quest ID.
Single enrollment uses platform SMTP because it calls sendEmail without an agency ID.
Bulk enrollment inserts do not explicitly initialize progress.

MAINTENANCE & SUPPORT

Troubleshooting

Learner was enrolled but did not receive email

Check server logs for Failed to send enrollment email or Email sending failed.
Confirm SMTP_HOST, SMTP_PORT, SMTP_USER, and SMTP_PASSWORD are configured.
Confirm SMTP provider credentials are valid and not blocked by provider policy.
Check spam/quarantine folders.
Confirm learner email in app_users.email is correct.

Start Quest button opens the wrong URL

Confirm APP_URL is set in the environment.
Confirm questID is passed to renderQuestEnrollmentEmail.
Confirm the target quest is accessible to the learner.

Bulk enrollment succeeds but some learners do not receive email

Check logs for Email failed: <learner_email>.
Check whether the failed learners were listed in failedEnrollments.
Check SMTP provider rate limits.
Consider splitting large CSV files into smaller batches until a retry queue exists.

Test enrollment email fails in admin settings

Check /api/admin/branding/email/test-enrollment response.
Run /api/admin/branding/smtp/test to isolate SMTP connectivity.
Verify agency SMTP config if using agency delivery.
Confirm platform SMTP fallback credentials are valid.

Branding does not appear in email

Confirm branding_details exists for the agency.
Confirm logo is a reachable public URL.
Confirm color_theme contains expected keys.
Confirm the email path passes an agencyId when agency branding is required.

Changelog

1.0 - Approved, Initial internal technical guide for Enrollment Alerts based on current enrollment email implementation, 06/29/2026

Document version: 1.0 - Published, Enrollment Alerts technical documentation, 06/29/2026
