1. Front Matter

Title: Multi-role RBAC
Author: scorevi (Sean Patrick Caintic)
Reviewers: armaminter
Created: June 2026
Status: Approved

2. Introduction & Goals

Problem Summary

WyzQuests serves multiple distinct user personas — platform administrators, agency owners, content creators, reviewers, and learners — each requiring isolated views and scoped permissions. A flat single-role model cannot accommodate the nested organizational structure where a user may simultaneously hold a platform role (what they can do across WyzQuests) and an agency membership role (what they can do within a specific agency workspace).

This document defines the three-layer RBAC model that governs every API route, database query (via Row Level Security), and frontend dashboard in WyzQuests.

Goals:

Enforce authorization at the API level — no client-trust-only guards.
Support dual-role identities: one platform role plus zero or one agency membership roles.
Enable privileged users (ADMIN, CREATOR) to "View As" lower-privilege roles for UX testing.
Allow fine-grained folder-level sharing (view/edit/admin/owner) independent of platform or agency roles.
Bind every authenticated request to a single, validated effective role via authenticate*() utilities.

Non-Goals:

Custom role-permission matrices per agency (agencies inherit the fixed hierarchy).
Attribute-Based Access Control (ABAC) beyond the existing role + agency membership + folder permission layers.
Impersonation in the security sense — "View As" is a UX preview, not full account takeover.
Temporary or time-limited role assignments.

Glossary

Term	Definition
Platform Role	A user's global role stored in `app_users.role`. One of: `ADMIN`, `AGENCY` (legacy), `CREATOR`, `REVIEWER`, `LEARNER`.
Agency Membership Role	A user's role within a specific agency, stored in `agency_members.role`. One of: `OWNER` (virtual — derived from `agencies.owner_clerk_id`), `ADMIN`, `CREATOR`, `REVIEWER`.
Effective Role	The role currently governing a request, after resolving the "View As" cookie against the View As Hierarchy. All `authenticate*()` functions use this.
View As	A feature allowing ADMIN and CREATOR users to switch their effective role for UX preview. Enforced at the API level via an httpOnly cookie.
RLS	Row Level Security — PostgreSQL policies on Supabase tables that enforce per-row access based on the authenticated user's JWT claims.
Re-auth	A single-use, 5-minute-expiry token required before performing sensitive admin actions (e.g., changing roles, deleting users).
Owner	The Clerk user who created the agency (`agencies.owner_clerk_id`). Not represented as an `agency_members` row. Holds implicit OWNER privileges.
Folder Permission	Granular access control on a creator's content folder. Levels: `view`, `edit`, `admin`, `owner`.

3. High-Level Architecture

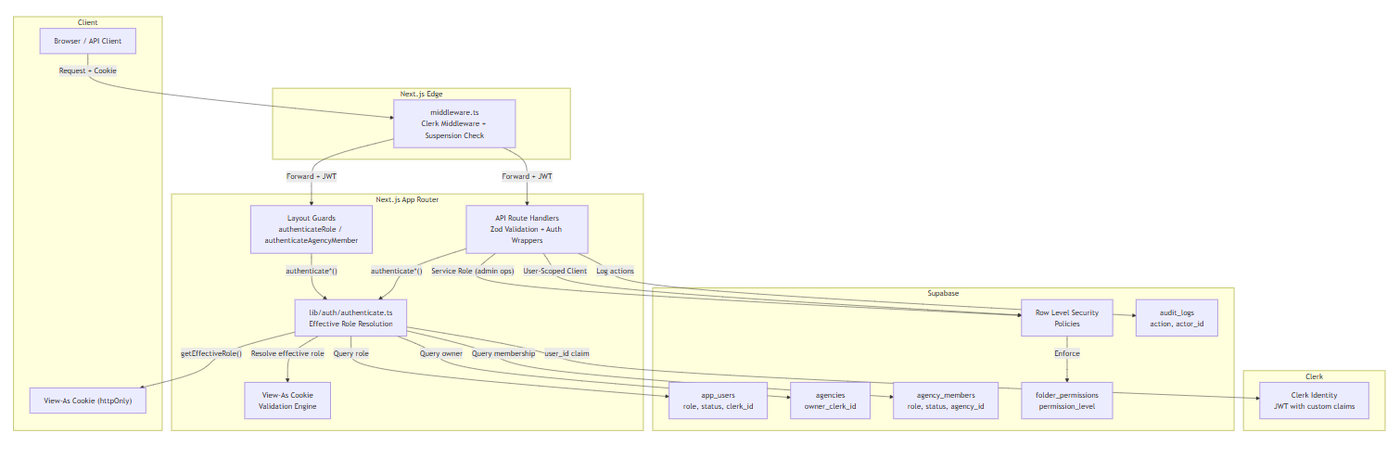

System Diagram

Technologies Used

Layer	Technology
Identity Provider	Clerk (JWT with custom `user_id` claim for Supabase)
Authorization Engine	Custom TypeScript utilities in `lib/auth/authenticate.ts`
Validation	Zod (`lib/schemas/role-switch.schema.ts`, `lib/agency/member-invitation.service.ts`)
Database RLS	Supabase PostgreSQL Row Level Security policies
Session Transport	httpOnly `view_as_role` cookie (View As feature)
Sensitive Action Re-auth	`admin_reauth_tokens` table with single-use, expiring tokens
Middleware	Next.js 15 `middleware.ts` (Clerk + suspension check)

4. Detailed Design & Implementation

Data Model / Schema

Platform Users (app_users)

-- Relevant columns
role VARCHAR(50) DEFAULT 'LEARNER'::character varying
  CHECK (role IN ('ADMIN', 'AGENCY', 'CREATOR', 'LEARNER', 'REVIEWER'));
status VARCHAR(20) DEFAULT 'Active'::character varying
  CHECK (status IN ('Active', 'Suspended'));
clerk_id VARCHAR(255) NOT NULL;

The role column is the single source of truth for platform-level authorization. New users default to LEARNER. The AGENCY value is legacy and functionally disabled in the View As hierarchy.

Agencies

CREATE TABLE agencies (
  id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
  owner_clerk_id TEXT NOT NULL,      -- Clerk ID; the agency OWNER
  name TEXT NOT NULL,
  branding JSONB DEFAULT '{}',
  created_at TIMESTAMPTZ DEFAULT now()
);

Ownership is determined by owner_clerk_id, not by a row in agency_members. The owner has implicit OWNER privileges across all agency features.

Agency Members

CREATE TABLE agency_members (
  id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
  agency_id UUID REFERENCES agencies(id) ON DELETE CASCADE,
  user_clerk_id TEXT NOT NULL,
  role VARCHAR(50) CHECK (role IN ('CREATOR', 'REVIEWER', 'ADMIN')),
  status VARCHAR(20) CHECK (status IN ('PENDING', 'ACTIVE', 'REVOKED')),
  invited_by TEXT,
  token_limit INTEGER,
  joined_at TIMESTAMPTZ DEFAULT now()
);

The role column governs agency-internal permissions. An OWNER is never stored here — ownership is derived from agencies.owner_clerk_id.

Folder Permissions

CREATE TABLE folder_permissions (
  id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
  folder_id UUID REFERENCES folders(id) ON DELETE CASCADE,
  user_clerk_id TEXT NOT NULL,
  permission_level TEXT CHECK (permission_level IN ('view', 'edit', 'admin', 'owner')),
  UNIQUE(folder_id, user_clerk_id)
);

RLS policies enforce:

view — Read files in folder
edit — Read + modify files
admin — Invite additional users, modify permissions
owner — Full control (assigned at folder creation)

Admin Re-auth Tokens

CREATE TABLE admin_reauth_tokens (
  id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
  token_hash TEXT NOT NULL UNIQUE,
  admin_user_id UUID NOT NULL REFERENCES app_users(id),
  action_code TEXT NOT NULL,
  consumed BOOLEAN DEFAULT FALSE,
  expires_at TIMESTAMPTZ NOT NULL,
  created_at TIMESTAMPTZ DEFAULT now()
);

Direct client access is blocked: USING (false). Tokens are consumed server-side via consumeReAuthToken().

Audit Logs

CREATE TABLE audit_logs (
  id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
  actor_id UUID NOT NULL,
  action TEXT NOT NULL,
  target_type TEXT,
  target_id UUID,
  metadata JSONB DEFAULT '{}',
  created_at TIMESTAMPTZ DEFAULT now()
);

RLS: Only users with app_users.role = 'ADMIN' can SELECT; INSERT is unrestricted for server-side logging.

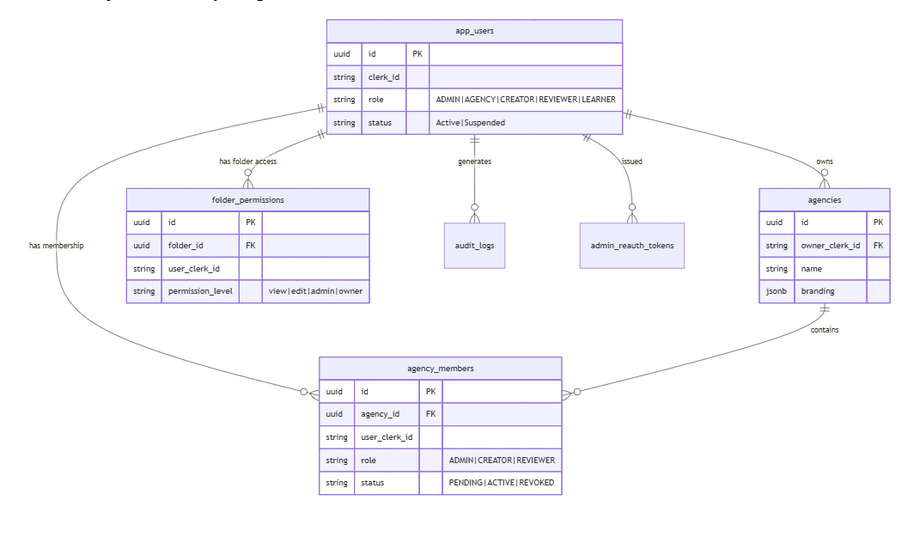

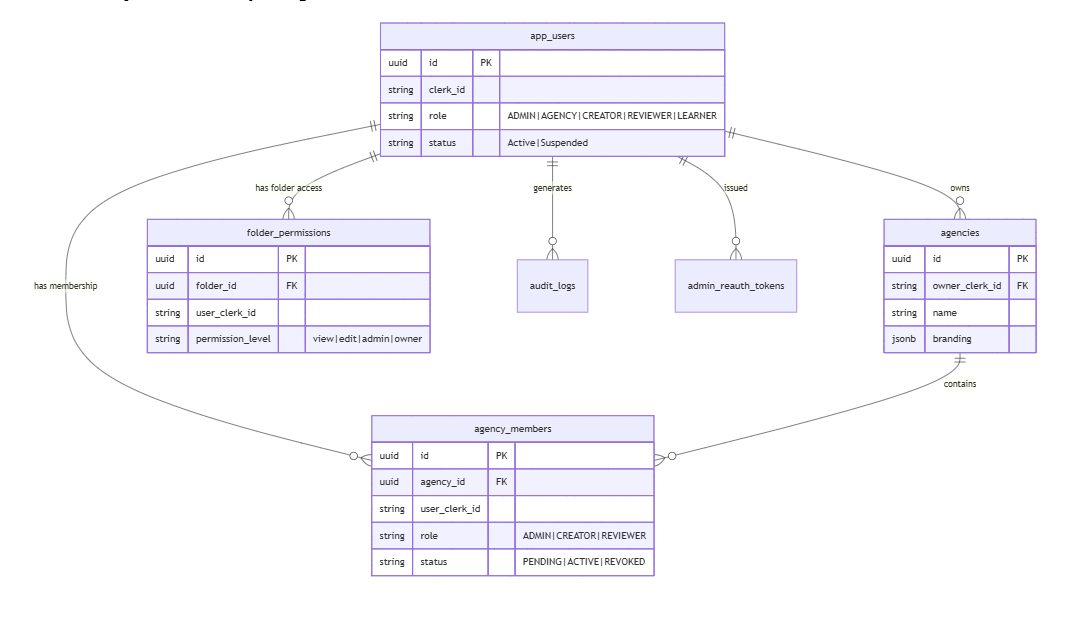

Entity Relationship Diagram

API Specification

Authorization Pattern

Every protected API route follows this pattern:

import { authenticateRole, authenticateAnyRole, handleAuthError } from "@/lib/auth/authenticate";

export async function POST(request: NextRequest) {
  try {
    const { id, role } = await authenticateRole("ADMIN");
    // Zod validation of request body
    // Business logic
    return ApiResponse.success(data);
  } catch (error) {
    return handleAuthError(error);
  }
}

Available Auth Functions

Function	Check Performed	Returns	Use Case
`authenticateUser()`	Valid Clerk session + synced in `app_users`	`{ id }`	Any authenticated endpoint
`authenticateUserWithRole()`	Above + fetches role	`{ id, role }`	Endpoints needing role info
`authenticateRole(role)`	Effective role equals `role`	`{ id, role }`	Single-role dashboards
`authenticateAnyRole(roles[])`	Effective role in `roles[]`	`{ id, role }`	Multi-role layouts (e.g., CREATOR+ADMIN)
`authenticateUserWithAgency()`	Above + current agency membership	`{ id, role, agency_id }`	Agency-scoped routes
`authenticateRoleWithAgency(role)`	Specific platform role + agency	`{ id, role, agency_id }`	Agency routes requiring specific platform role
`authenticateAgencyAdmin()`	Agency OWNER or ADMIN membership	`{ id, role, agency_id, membershipRole }`	Team management, billing
`authenticateAgencyMember()`	Any active agency member (excludes LEARNERs)	`{ id, role, agency_id }`	Agency dashboard access

Response Format

All API routes return standardized ApiResponse envelopes:

{
  "success": true,
  "data": { ... },
  "error": null
}

{
  "success": false,
  "data": null,
  "error": {
    "code": "AUTHORIZATION_ERROR",
    "message": "Access denied: Requires ADMIN role"
  }
}

Key RBAC Endpoints

Method	Route	Required Auth	Description
`GET`	`/api/user/available-roles`	`authenticateUserWithRole`	List roles available for "View As"
`POST`	`/api/user/switch-role`	`authenticateUserWithRole`	Set View As cookie
`POST`	`/api/admin/change-role`	`authenticateRole("ADMIN")` + reauth	Change a user's platform role
`POST`	`/api/admin/reauth`	ADMIN + manual check	Issue re-auth token
`POST`	`/api/admin/suspend-user`	ADMIN	Suspend a user account
`DELETE`	`/api/admin/delete-user`	`authenticateRole("ADMIN")` + reauth	Delete user (blocks deleting other admins)
`GET`	`/api/admin/list-users`	`authenticateRole("ADMIN")`	List users with role filters
`GET`	`/api/agency/status`	Any authenticated + View As	Agency membership status
`GET`	`/api/agency/team/list`	`authenticateAgencyAdmin`	Team members with platform roles
`POST`	`/api/agency/team/invite`	`authenticateAgencyAdmin`	Invite member to agency
`PATCH`	`/api/agency/team/members/[id]`	`authenticateAgencyAdmin` + OWNER	Edit member role/token limit
`DELETE`	`/api/agency/team/members/[id]`	`authenticateAgencyAdmin` + OWNER	Remove member
`PUT`	`/api/agency/branding`	`authenticateAgencyAdmin` + OWNER	Update agency branding
`GET/POST`	`/api/folder/permissions/[folder_id]`	Role + `validateViewPermission` / `validateEditPermission`	Manage folder sharing

Logic & Workflows

Effective Role Resolution Flow

When any authenticate*() function is called, the following resolution chain executes:

1. authenticateUser()
   ├── Verify Clerk session validity
   ├── Query or sync user in app_users table
   └── Return internal user ID (cached 5 min)

2. authenticateUserWithRole()
   ├── Call authenticateUser()
   ├── Query app_users.role
   └── Return { id, role } (cached 30 sec)

3. getEffectiveRole()
   ├── Read actual role from app_users
   ├── Read view_as_role cookie
   ├── Validate against VIEW_AS_HIERARCHY
   │   ├── ADMIN  → AGENCY, CREATOR, REVIEWER, LEARNER
   │   ├── CREATOR → REVIEWER, LEARNER
   │   ├── REVIEWER → LEARNER
   │   ├── AGENCY → (none — legacy disabled)
   │   └── LEARNER → (none)
   ├── If cookie value not in hierarchy: log security warning, ignore cookie
   └── Return effective role

4. authenticateRole(requiredRole)
   ├── Call authenticateUserWithRole()
   ├── Call getEffectiveRole()
   ├── Compare effective role === requiredRole
   └── If mismatch: throw AuthorizationError (403)

5. authenticateAgencyAdmin()
   ├── Call authenticateUserWithRole()
   ├── Check isRestrictedFromAgencyAdmin() — blocks CREATOR, REVIEWER, LEARNER
   ├── Query agency_members for ACTIVE membership
   ├── Check membership.role === 'ADMIN' OR user is agency owner
   └── If no match: throw AuthorizationError (403)

Agency Membership Invitation Validation

The invitation system (lib/agency/member-invitation.service.ts) enforces a strict rule chain before allowing an invite:

Rule	Check	Reason
1	Inviter !== Invitee	Cannot invite yourself
2	Invitee is not Super Admin	Cannot invite platform ADMINS
3	Invitee is not an Agency Owner	Cannot invite existing AGENCY-role users
4	Invitee is not a LEARNER	Learners cannot be agency members
5	Role compatibility	CREATOR platform role → only CREATOR/ADMIN in agency; REVIEWER → only REVIEWER/ADMIN
6	No existing agency membership	User cannot belong to multiple agencies
7	Active user only	Cannot invite suspended users
8	Only OWNER can invite ADMIN	Agency admins cannot escalate members to admin

View As Cookie Lifecycle

1. User calls POST /api/user/switch-role { viewAsRole: "CREATOR" }
2. Server validates:
   a. User is authenticated
   b. getEffectiveRole() confirms current effective role
   c. viewAsRole is in VIEW_AS_HIERARCHY[user.actualRole]
3. If valid: set httpOnly cookie "view_as_role"="CREATOR" (24h expiry)
4. Subsequent requests:
   a. middleware.ts forwards cookie
   b. authenticate*() calls getEffectiveRole()
   c. All authorization checks use effectiveRole = "CREATOR"
   d. API returns viewingAsRole, isViewingAsOther flags
5. To reset: call POST /api/user/switch-role with no body → clears cookie

Re-auth Token Flow (Sensitive Actions)

1. Frontend detects sensitive action (e.g., change-role, delete-user)
2. Frontend calls GET /api/admin/reauth to determine auth method
3. Frontend calls POST /api/admin/reauth { password: "..." }
4. Server verifies Clerk credentials → issues admin_reauth_tokens row (5-min TTL, single-use)
5. Frontend includes reauth_token in subsequent sensitive action call
6. Server calls consumeReAuthToken():
   a. Hash token
   b. Find matching unconsumed, non-expired token
   c. Mark as consumed
   d. Return success
7. If token invalid/expired/used: return 403

Suspension Check (Middleware)

middleware.ts runs on every request:
1. Clerk middleware authenticates session → clerkUserId
2. Skip check for public routes: /api/webhooks/clerk, /sign-in, /sign-up, /access-revoked
3. Skip check for static assets
4. Query app_users.status WHERE clerk_id = clerkUserId (service role — bypasses RLS)
5. If status === "Suspended":
   - API routes → 403 JSON response
   - Page routes → redirect to /access-revoked
6. Else: forward request normally

5. Infrastructure & Operations

Dependencies

Service	Purpose	Failure Impact
Clerk	Identity verification, JWT issuance	All authentication fails; API returns 401
Supabase	User data, role queries, RLS enforcement	Authorization data unavailable; API returns 500
Next.js Edge Runtime	Middleware suspension checks	Suspended users may access protected routes
httpOnly Cookies	View As session transport	View As feature silently falls back to actual role

Monitoring & Alerting

Auth failures: All AuthorizationError and AuthenticationError instances are thrown via the centralized handleAuthError() utility. Monitor 401/403 rates by endpoint.
View As security warnings: getEffectiveRole() logs console.warn when a cookie value is outside the allowed View As hierarchy — indicates potential tampering attempts. Monitor via log aggregation.
Re-auth failures: Failed consumeReAuthToken() calls log the reason (expired, already used, invalid hash). Monitor for brute-force indicators.
Suspension hits: Middleware suspension checks should be monitored for volume — unexpected spikes may indicate a wave of compromised accounts.
Audit log volume: audit_logs insert rate for sensitive actions (role change, user delete, suspension) should be tracked.

Deployment Plan

Schema Migrations: Run in Supabase dashboard or via supabase db push — all RBAC tables (agency_members, folder_permissions, admin_reauth_tokens, audit_logs) include DDL with RLS policies.
RLS Verification: After each migration, verify policies are enabled on every table: SELECT tablename FROM pg_tables WHERE rowsecurity = true.
Role Defaults: New users default to LEARNER via lib/syncUser.ts. Verify on Clerk webhook and first sign-in paths.
Feature Flags: No feature flags are used for RBAC — all checks are compile-time via authenticate*() calls. To add a new role:
a. Update the Zod enum in lib/schemas/role-switch.schema.ts (line 5)
b. Update the database CHECK constraint in app_users
c. Update VIEW_AS_HIERARCHY if the role should be switchable
d. Add layout guards and nav group visibility rules
e. Update middleware suspension logic if needed
f. Run migration, deploy server

6. Testing & Quality Assurance

Test Strategy

Level	Scope	Approach
Unit	`authenticate*()` functions, `getEffectiveRole()`, `consumeReAuthToken()`	Mock Supabase and Clerk responses; assert correct role resolution and error throw
Integration	API routes with auth guards	Test each route with valid/invalid roles, View As cookies, expired tokens
RLS	Database row-level policies	Run SQL queries as different roles via Supabase local to verify INSERT/UPDATE/DELETE restrictions
End-to-End	Full role workflows	Login → navigate dashboard → switch View As → perform agency admin actions → verify folder permissions

Known Limitations

Single Agency Membership: Users can belong to at most one agency. Multi-agency support is not planned for MVP.
AGENCY Platform Role (Legacy): The AGENCY platform role exists in the check constraint but is effectively disabled in the View As hierarchy. No users should hold this role.
View As Does Not Affect RLS: The "View As" cookie only changes the effective role in TypeScript auth checks. RLS policies on Supabase still use the user's actual JWT user_id claim. This means View As cannot be used to test RLS behavior from a lower-privilege perspective.
No Dynamic Permissions: Permissions are role-based, not configurable per agency. All agencies share the same role hierarchy.
No Role Expiration: Roles are permanent until manually changed by an admin. There is no time-bound role assignment.

7. Maintenance & Support

Troubleshooting

Symptom	Likely Cause	Debug Steps
403 "Requires ADMIN role"	View As cookie set to lower role	Check `view_as_role` cookie in browser; clear or switch back via RoleSwitcher
403 on agency routes	User is LEARNER or has REVOKED membership	Verify `agency_members.status = 'ACTIVE'` and `agency_members.role`
403 on folder permissions	Insufficient `permission_level`	Check `folder_permissions` row; verify RLS policies apply
401 on API routes	Missing or expired Clerk session	Check Clerk JWT; verify `middleware.ts` public route list includes endpoint
"Token invalid" on re-auth	Token expired (>5 min) or already consumed	Re-issue token via `POST /api/admin/reauth`
Suspended user accessing routes	Middleware suspension check may be failing	Verify `app_users.status`; check service role key in Supabase client
View As not working	Cookie not set or invalid hierarchy	Verify `VIEW_AS_HIERARCHY` in `lib/schemas/role-switch.schema.ts`; check `getEffectiveRole()` console warnings
Invitation failure	Role conflict or user already in agency	Check invitation validation rules in `lib/agency/member-invitation.service.ts`

Changelog

Version	Status	Description	Date
1.0	Draft	Initial RBAC architecture documentation — covers three-layer model, auth functions, API endpoints, deployment, and troubleshooting	06/29/2026

Document Version

1.0 — Draft, Initial RBAC architecture documentation for multi-role system, 06/29/2026
